SPECIFICATIONS

Audio Format Support: MP3, WAV,FLAC,ape,WMA

Balanced Out: No

Battery Life: > 20 hours

Battery Specification: External Power

Bluetooth: Yes

Body Material: Plastic

Brand Name: kebidu

Certification: CE

Compatible Devices: Others

DAC: -

DSP: AB5362B

Designed for motor vehicle installation: No

Dimensions (WxHxD): 112*62 mm

Display Size: None

External Memory: Yes

Feature 1: Support folder playback

Feature 10: amplified bluetooth decoder board

Feature 11: mp3 player bluetooth speaker

Feature 12: 12v bluetooth board

Feature 13: bluetooth mp3 decoder board

Feature 14: Power Home Digital amplifier MP3 Decoder Board

Feature 15: For Music Speaker

Feature 16: Support TF USB AUX 3.5 WAV Call Recording

Feature 17: placa decodificadora mp3 bluetooth

Feature 2: Support call

Feature 3: Support power off memory

Feature 4: Folder switching function

Feature 5: Support song format MP3 WMA WAV APE FLAC

Feature 6: Bluetooth 5.0

Feature 7: Power 80W ( 2*40W )

Feature 8: with Volume Control

Feature 9: Support recording

Function: Voice Recorder,FM Radio,Bluetooth,Build in Speaker

Have Speakers or not: Yes

High-concerned chemical: None

Model Number: Bluetooth 5.0 MP3 Decoder Board

Operation Mode: Touch Tone

Origin: Mainland China

Package: No

Screen: Yes

Signal Noise Ratio: ≥89dB

Storage Type: Flash Memory

Streaming Service Compatibility: Other

Style: Pure Audio MP3

Supports EBook Reading: No

Supports FM: Yes

Supports Recording Function: Yes

WIFI: No

battery: not include

power supply: DC 5V-26V

Model: JQ-D009BT (Power amplifier 2*40W)

Bluetooth version 5.0

Power amplifier ICCS8673E, power: 2*40W (80W requires voltage value: DC25V)

Bluetooth call function

recording function

Music format: MP3 / WMA / WAV / FLAC / APE lossless format music

Radio FM frequency: 87.5-107.5 MHZ

Folder switching function

Support function introduction: support MP3 / USB / TF/ LINE IN / FM / BLUETOOTH/remote control connection/DC 5V-26V

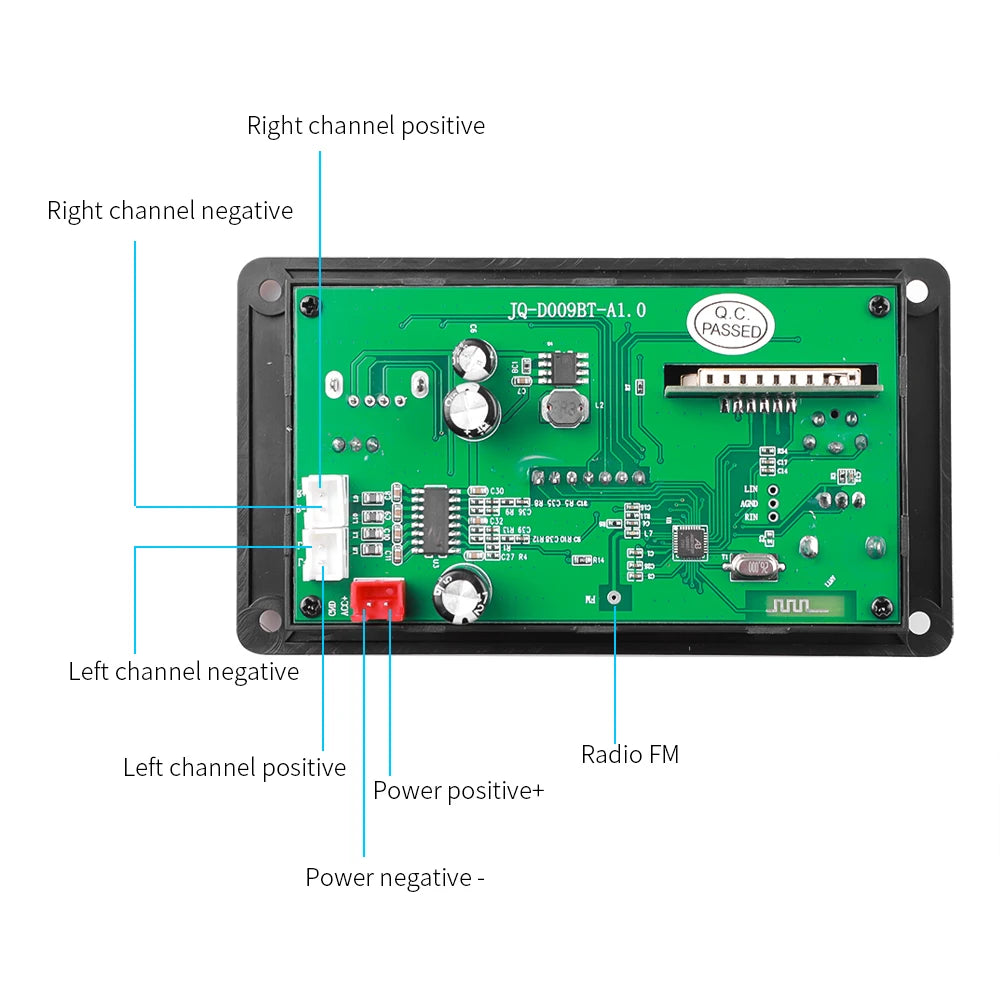

About the structure: Panel size: length 112 * width 62 MM, the panel is surrounded by screw holes, the depth of the board is 22MM

Recording function description

1. Long press the MODE button to start recording, long press the MODE button again to cancel the recording function and play the recording file;

2. When recording, you need to connect a storage device, such as U disk or TF card;

Under storage devices, such as U disk or TF card, long press the PLAY/PAUSE button (play/pause) to enter the recording folder and play the recording file;

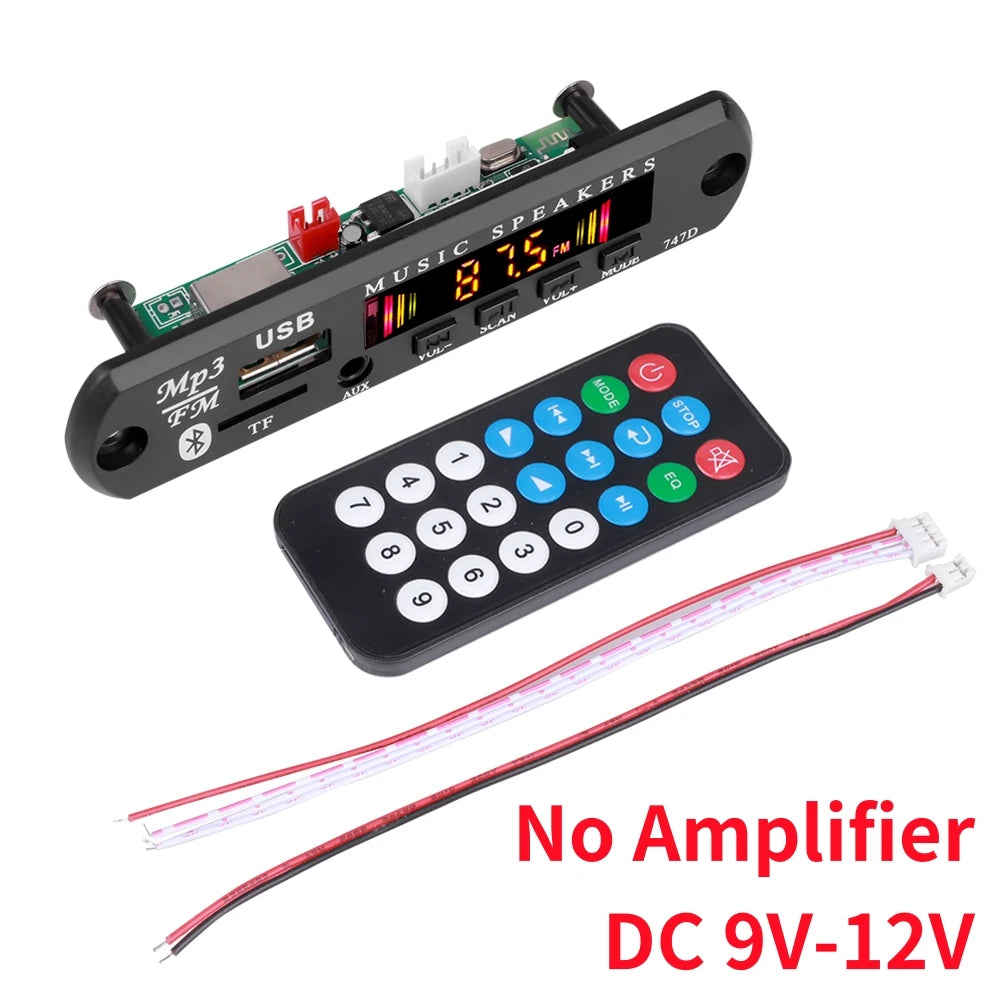

Feature:

Input voltage: 9-12V

Dimensions: 106*25 mm

LED color screen: digital screen display, showing red

* Support USB(up to 32GB), SD(TF),AUX,FM

* Support bluetooth (after been paired with mobile phones can realize wireless music play)

Infrared receiving module

AUX: audio input interface

VOL-: Short press is to select the previous song; long press is to decrease the volume

PLAY/PAUSE: Short press is the switch between pause and play; long press is the FM FM automatic station

VOL+: Short press is to select the next song; long press is to increase the volume

MODE: Switching of USB/TF/FM/LINE IN/BLUETOOTH

Package include:

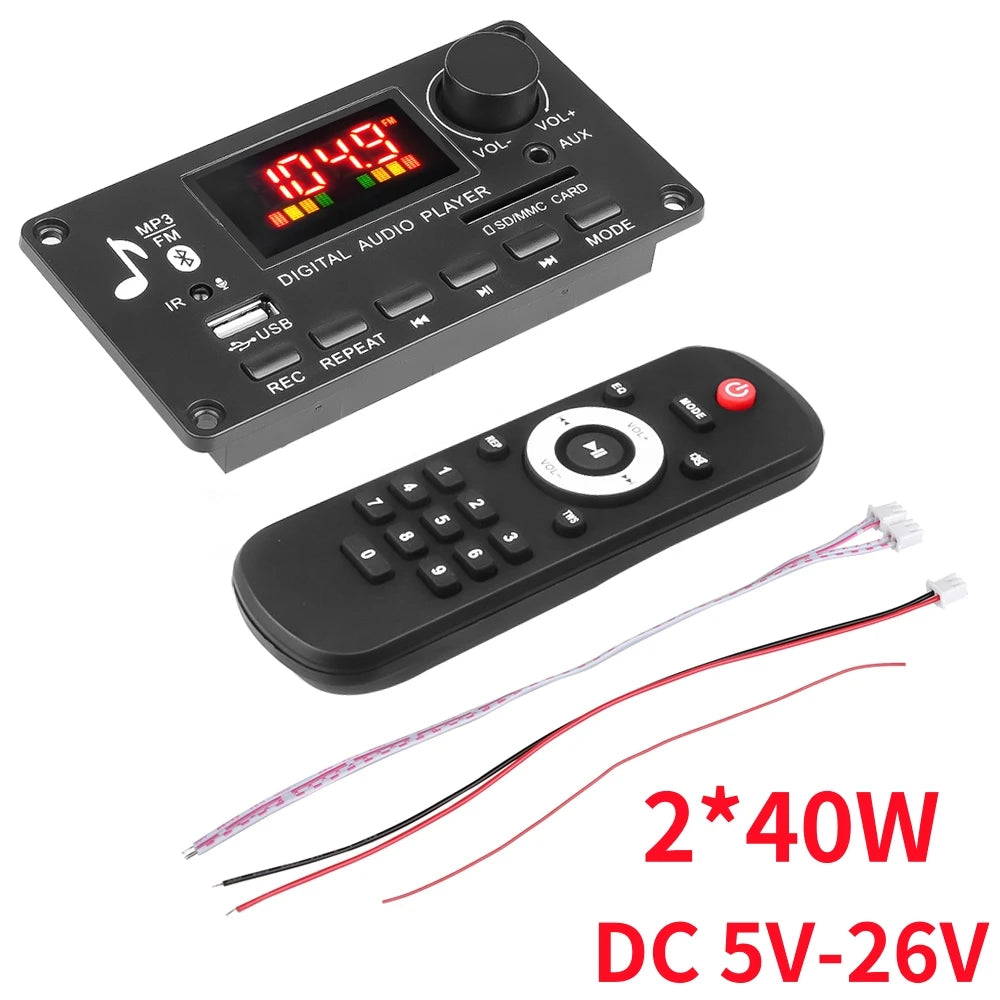

1 X MP3 Decoder Board

1 x Remote control (no Battery)
